Valve Lubricants

Description

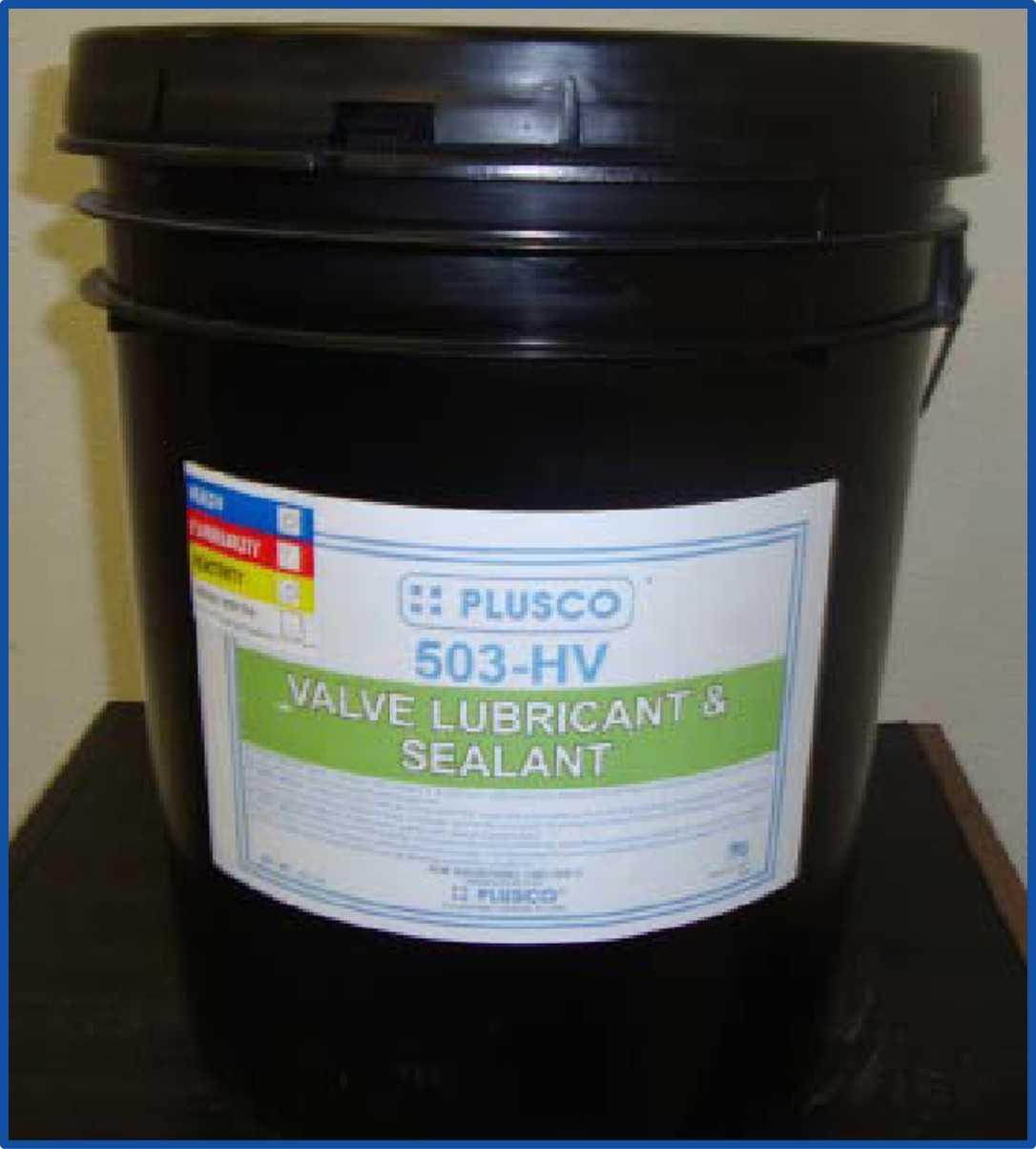

• PLUSCO 503HV Plug Valve Lubricants & Sealants is a High Viscosity Valve Lubricant and Sealant is a premium valve lubricant designed to provide continuous lubrication and sealing during service an after extended downtime periods.
• PLUSCO 503HV Plug Valve Lubricants & Sealants contains PLUSLON® an improved PTFE resin which provides protection from galling and seizing by forming a residual coating on all mating metal surfaces. It inhibits against the formation of rust and corrosion preventing freeze-up while providing resistance against washout by petroleum gases and various condensates.
• PLUSCO 503HV Plug Valve Lubricants & Sealants keeps valves free moving, eliminates site contamination by providing continuous sealing of various LPG compositions, salt water. chemical solutions and various condensates. It is formulated to provide extreme pressure lubrication. will not freeze-up and provides continuous sealing during adverse operating conditions.

Application

• PLUSCO 503HV Plug Valve Lubricants & Sealants is recommended for use in service of alkalies, glycols, diluted acids and other various solutions found in most chemical streams.
• PLUSCO 503HV Plug Valve Lubricants & Sealants is formulated for application to valves equipped with bottom head fittings.

Specifications

Color	Olive Green
Classification	Synthetic Base
Consistency	Tacky
Thickener	Organic Composition
Flash Point (ASTM D-92)	Not Applicable
Percent Solids	31.0%
Clay Fillers	None
Specific Gravity @ 77 °F	1.172
Density	9.8 Lbs./Gal.
Service Temperature Range	-40 °F to 500 °F

Description

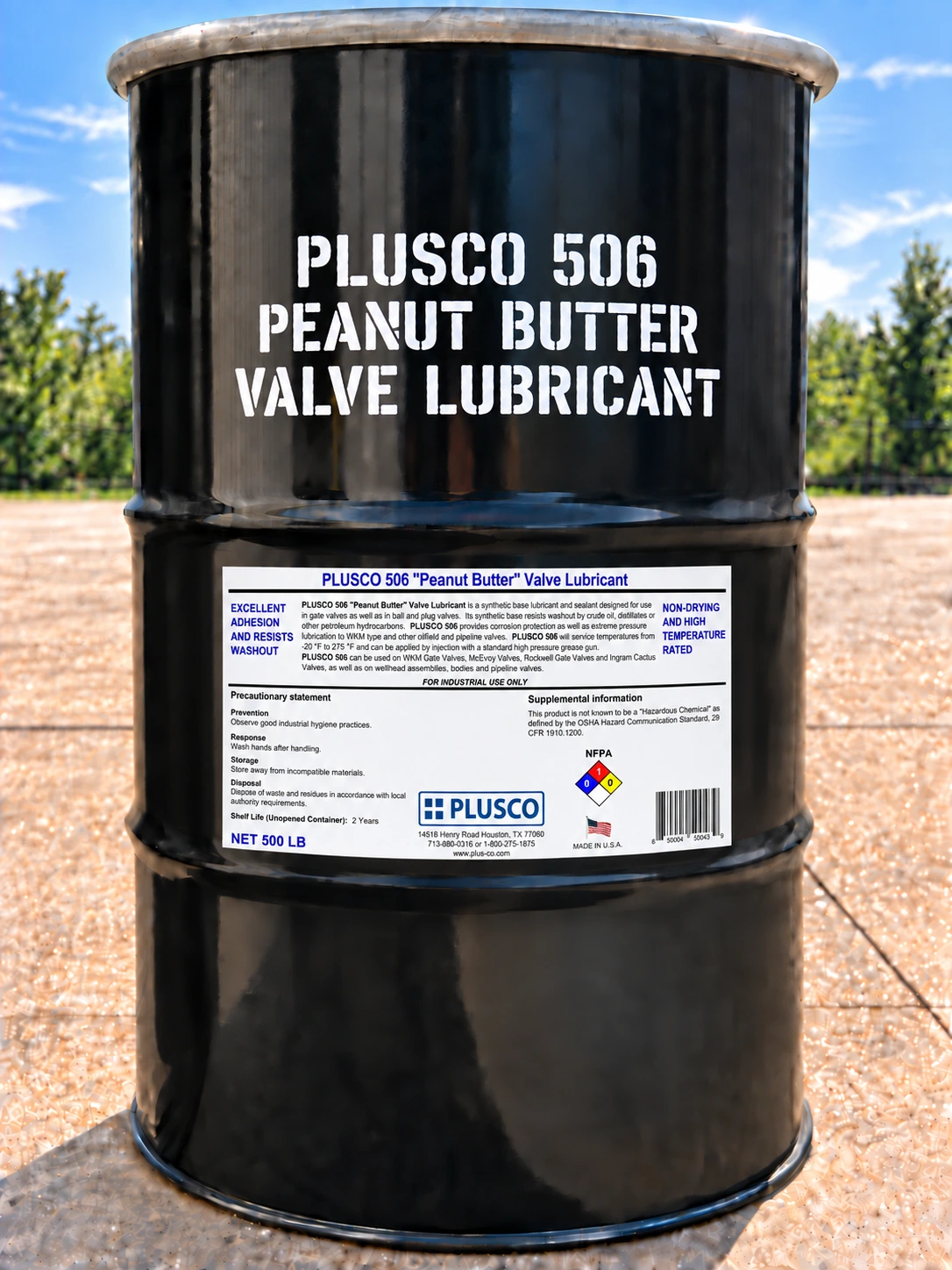

PLUSCO 506 Peanut Butter Valve Lubricant is a synthetic base lubricant and sealant designed for use in gate valves as well as in ball and plug valves. Its synthetic base resists washout by crude oil, distillates or other petroleum hydrocarbons. PLUSCO 506 provides corrosion protection as well as extreme pressure lubrication to WKM type and other oilfield and pipeline valves.

PLUSCO 506 Peanut Butter Valve Lubricant will service temperatures from -20 °F to +275 °F and can be applied by injection with a standard high-pressure grease gun. It is equivalent or superior to many products commonly referred to as "Peanut-Butter Lube" including Lub-Chem 102 Special, Climax 110, and WKM 102.

Application

PLUSCO 506 Peanut Butter Valve Lubricant can be used on: WKM Gate Valves, McEvoy Valves, Rockwell Gate Valves, and Ingram Cactus Valves, as well as on a wellhead assembles, bodies and pipeline valves.

Specifications

Color	Light Brown
Consistency	Extremely Tacky
Classification	Synthetic
Penetration Worked (ASTM 216)	280
Flash Point (ASTM D-92)	506 °C
Specific Gravity @ 77 °F	1.2
Density	10 Lbs./Gal.
Washout Resistant	Yes
Density	9.8 Lbs./Gal.
High Temp Rated	Yes

Description

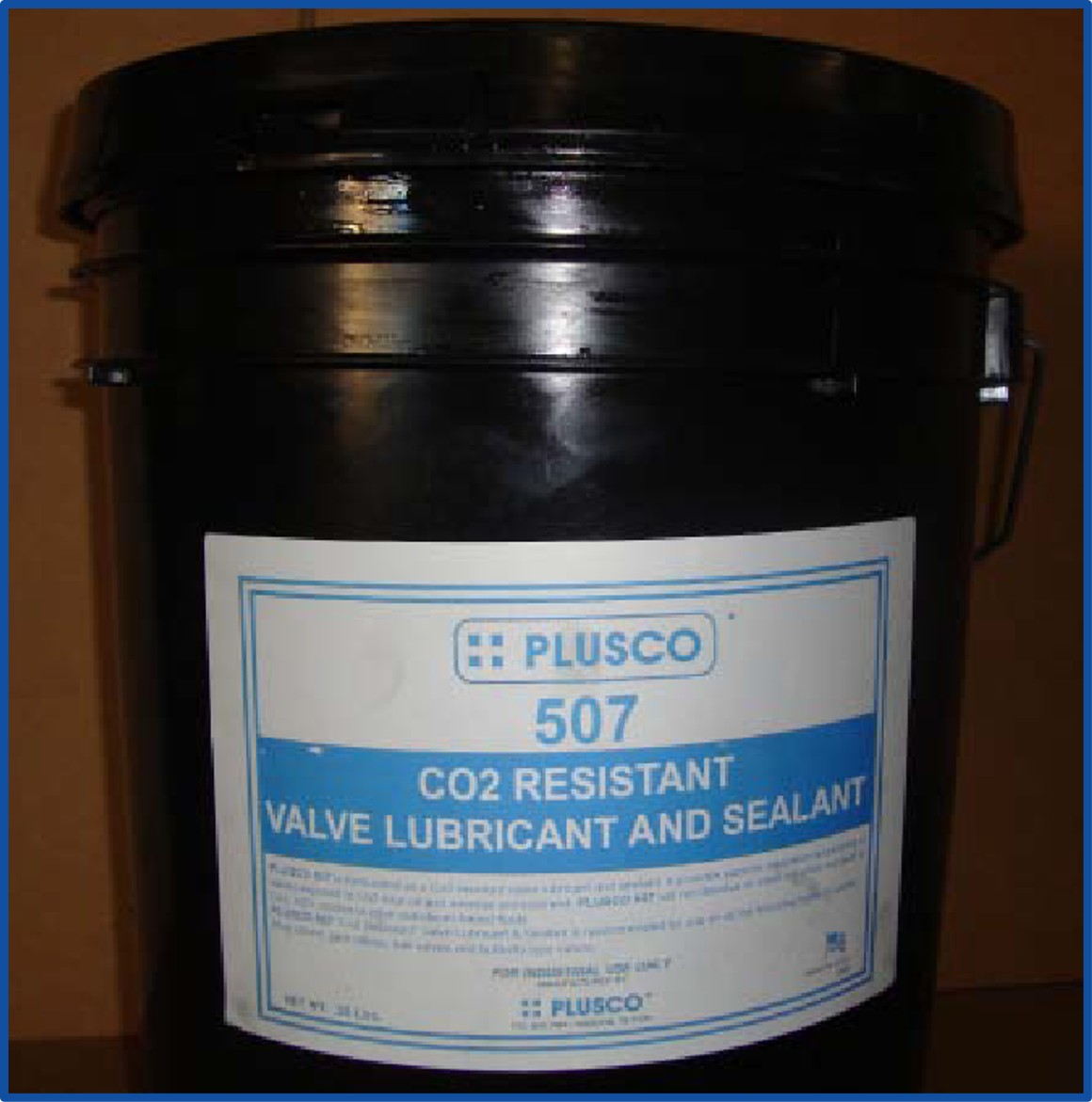

PLUSCO 507 Valve Lubricant & Sealant is formulated as CO2 resistant valve lubricant and sealant. It provides superior lubrication and sealing to valves exposed to CO2 and other adverse environments. PLUSCO 507 Valve Lubricant & Sealant will not dissolve or wash out when exposed to CO2, H2S, crudes or other petroleum based fluids.

PLUSCO 507 Valve Lubricant & Sealant is very cohesive and will not wash out under adverse conditions thus maximizing continuous valve sealing. PLUSCO 507 Valve Lubricant & Sealant will allow continuous valve operation between extended lubrication intervals.

PLUSCO 507 Valve Lubricant & Sealant does not contain residual solids such as bentonite or soap thickeners which build up in the valve body and interfere with valve operation.

Application

PLUSCO 507 Valve Lubricant & Sealant is recommended for use on plug valves, gate valves, ball valves, or butterfly type valves.

Specifications

Color	Translucent White
Classification	Synthetic
Type Fluid	Dimethyl Silicone
Stability	Excellent
NLGI Grade	00, 0, 1, 2, 3
Service Temperature	-40 °F to 500 °F
Bleed Level	NIL
Flash Point	> 500 °F (> 260 °C)
Specific Gravity @ 77 °F	0.97

Description

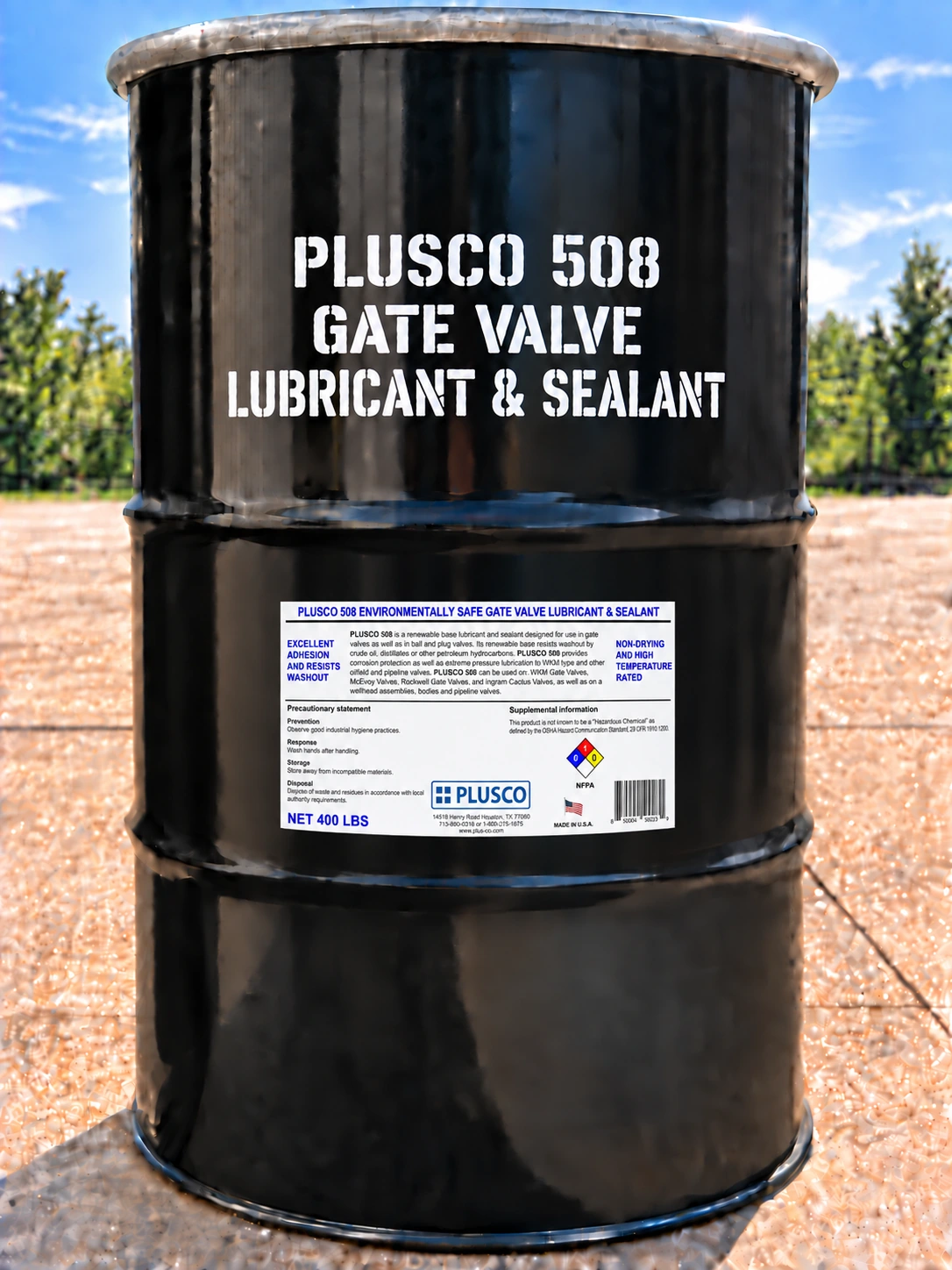

PLUSCO 508 Environmentally Safe Gate Valve Lubricant & Sealant is a renewable base lubricant and sealant designed for use in gate valves as well as in ball and plug valves. Its renewable base resists washout by crude oil, distillates or other petroleum hydrocarbons. PLUSCO 508 Environmentally Safe Gate Valve Lubricant & Sealant provides corrosion protection as well as extreme pressure lubrication to WKM type and other oilfield and pipeline valves.

508 Environmentally Safe Gate Valve Lubricant & Sealant will service temperatures from -15 °F to +450 °F, and can be applied by injection with a standard high-pressure grease gun. PLUSCO 508 contains corrosion inhibitor, EP additive and anti-oxidant.

PLUSCO 508 Environmentally Safe Gate Valve Lubricant & Sealant does not contain residual solids such as bentonite or soap thickeners which build up in the valve body and interfere with valve operation.

Application

PLUSCO 508 Environmentally Safe Gate Valve Lubricant & Sealant can be used on: WKM Gate Valves, McEvoy Valves, Rockwell Gate Valves, and Ingram Cactus Valves, as well as on a wellhead assembles, bodies and pipeline valves.

Specifications

Color	Golden Paste
Consistency	Tacky
Classification	Synthetic
Penetration, ASTM D-217 @ 77°F	265 - 295
NLGI Grade	2
Flash Point, ASTM D-92	450°
Solubility (Water)	<1
Specific Gravity @ 77°F	0.925
Density, lbs/gal @ 77 °F	7.7
Service Temperature Range	-15 °F to +450 °F
Shelf Life (unopened container)	2 Years
Other Properties	High Temp Rated Excellent Adhesion Resist Washout Non-Drying

Description

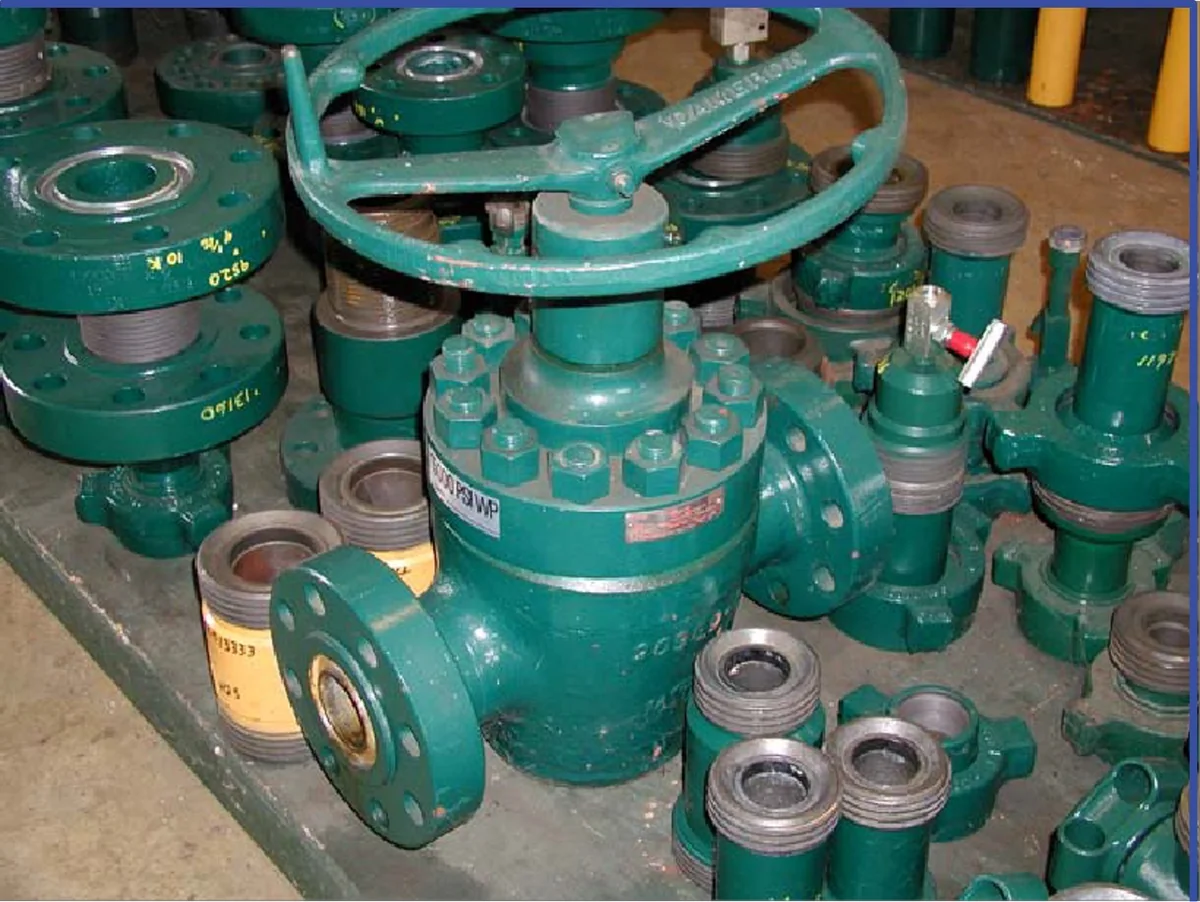

PLUSCO 509 Special Peanut Butter Valve Lubricant is a semi-synthetic base lubricant designed to service industrial valves. PLUSCO 509 Special Peanut Butter Valve Lubricant is formulated with a balanced blend of lubricating additives designed to provide ease of valve operation while minimizing valve freeze-up. This PLUSCO 509 Special Peanut Butter Valve Lubricant allows ease of valve operation while it provides sealing, and corrosion protection during interval valve service. PLUSCO 509 Special Peanut Butter Valve Lubricant does not contain any solvents or filler clays, which may interfere or hinder valve operation.

Application

PLUSCO 509 Special Peanut Butter Valve Lubricant can be used on WKM Gate Valves, McEvoy Valves, Rockwell Gate Valves, Ingram Cactus Valves as well as on wellhead assembly bodies and pipeline control valves.

Specifications

Color	Light Brown
Consistency	Extremely Tacky
Classification	Semi-Synthetic
Specific Gravity @ 60 °F	1.1
Density @ 60 °F	9.3
Flash Point	> 350 °F (> 177 °C)

Description

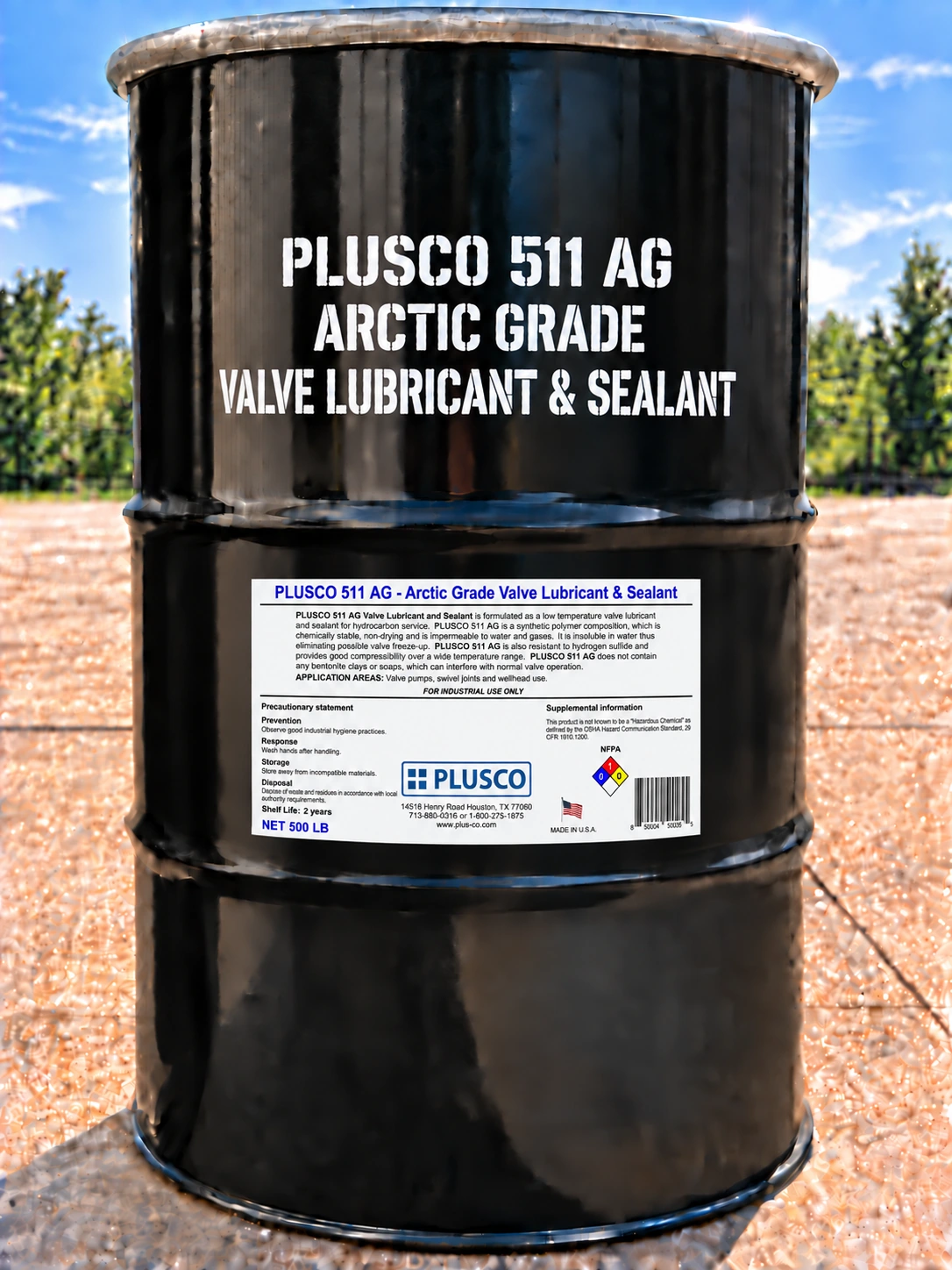

PLUSCO 511 Arctic Grade Valve Lubricant & Sealant is formulated as a low temperature valve lubricant and sealant for hydrocarbon service. PLUSCO 511 Arctic Grade Valve Lubricant & Sealant is a synthetic polymer composition, which is chemically stable, non-drying and is impermeable to water and gases. It is insoluble in water thus eliminating possible valve freeze-up. PLUSCO 511 Arctic Grade Valve Lubricant & Sealant is also resistant to hydrogen sulfide and provides good compressibility over a wide temperature range. PLUSCO 511 Arctic Grade Valve Lubricant & Sealant does not contain any bentonite clays or soaps, which can interfere with normal valve operation.

Application

PLUSCO 511 Arctic Grade Valve Lubricant & Sealant is recommended to be used in valve pumps, swivel joints and wellhead use.

Specifications

Color	Black
Base Oil	Synthetic Polymer
Consistency	Heavy Viscous Liquid
Odor	Odorless
Specific Gravity @ 60 °F	0.898
Flash Point	470 °F
Service Temperature	-45 °F to +270 °F
Dropping Point	566 °F

Description

PLUSCO 515 Semi-Synthetic Well Head Lube is a high temperature valve lubricant. It is formulated as a heavy-duty industrial lubricant with rust, corrosion and extreme pressure additives.

PLUSCO 515 Semi-Synthetic Well Head Lube graphite lubricant which provides a residual film of low co-efficient of friction which enhances its recommendation for industrial application. This graphite-based grease forms a lubricating film that prevents metal-to-metal contact by separating frictional surfaces. It is excellent for use where operating temperatures reach up to 575 °F (302 °C).

Application

Area of application for PLUSCO 515 Semi-Synthetic Well Head Lube include valve lubrication, couplings, bolts unions, nipples, bun plugs, gaskets, packings, drive chains, gears and pipe threads.

PLUSCO 515 Semi-Synthetic Well Head Lube is also recommended for high temperature bearings, cams, Industrial machine parts, farm equipment, automotive engine parts, construction equipment, mining equipment and oil and chemical refineries. It is also used in the oilfield for general lubrication of rig equipment, down-hole tools and instruments.

Specifications

Color	Black
Type	Semi-Synthetic
Base	Complex Mixture
Active Component	Graphite
Penetration Worked (ASTM 216)	265-295
NLGI Grade	2
Specific Gravity @ 60 °F	0.898
Dropping Point (ASTM D-566)	575 °F (302 #176;C)
Timken Load (ASTM D2509)	50 Lbs. +
Separation	Nil

Description

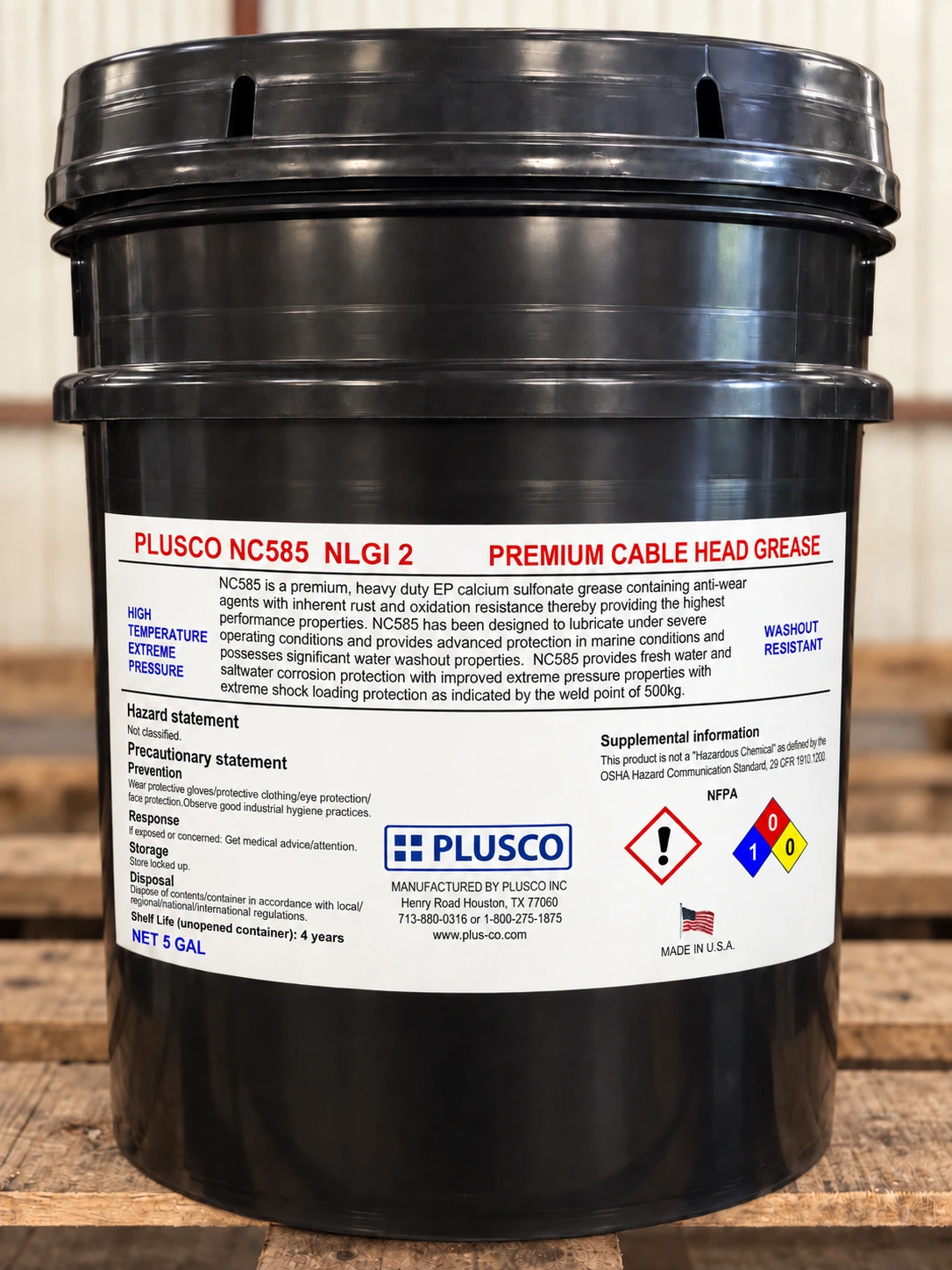

NC585 is a premium, heavy duty EP calcium sulfonate grease containing anti-wear agents with inherent rust and oxidation resistance thereby providing the highest performance properties. NC585 has been designed to lubricate under severe operating conditions and provides advanced protection in marine conditions and possesses significant water washout properties. NC585 provides fresh water and saltwater corrosion protection with improved extreme pressure properties with extreme shock loading protection as indicated by the weld point of 500kg.

Application

Premium cable head grease designed for severe operating and marine conditions, with fresh water and saltwater corrosion protection.

Specifications

NLGI Grade	2
Thickener	Calcium Sulfonate
Weld Point	500 kg
Shelf Life (Unopened Container)	4 years
