Pipe Dopes

Description

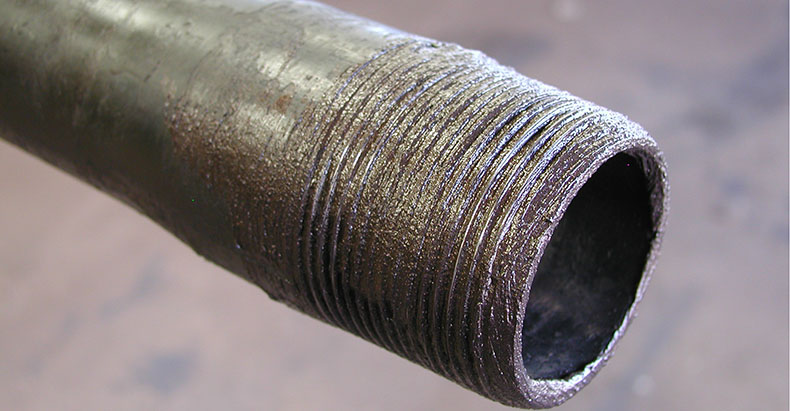

PLUSCO 100 API Modified Thread Compound is manufactured to meet the specifications of API Bulletin 5A3. PLUSCO 100 API Modified Thread Compound contains a complete corrosion protection package designed to protect threads against the effects of (H2S) (hydrogen sulfide), salt water, or many other chemicals.

Application

PLUSCO 100 API Modified Thread Compound may be used in hydrostatic testing, pipe storage, or as a down hole running compound. It is recommended for use on casing, tubing, line pipe, and meets all of the performance objectives for a thread compound described in Bulletin 5A3.

PLUSCO 100 API Modified Thread Compound is not recommended for use on rotary shouldered connections as stated in API 5A3.

Specifications

Color	Copper Brown
Texture	Smooth
Worked Penetration (ASTMD-217)	320
NLGI Grade	1
Specific Gravity @77°F	1.80-1.83
Density (ASTM D-1298)	14.84-15.25
Dropping Point (ASTM D-2265)	375 °F
Brushability	0°F / -18°C
Service Rating	500°F / 260°C
Friction Factor	1

Description

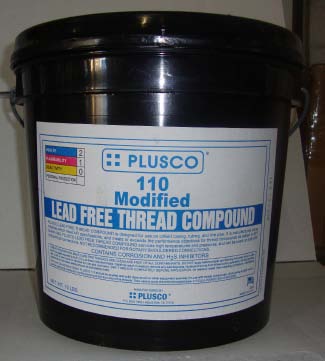

PLUSCO 110 Lead Free Thread Compound has been designed to replace conventional API Compounds which contain over 30% metallic lead powder. Meets or exceeds the eight objectives for thread compound as stated in API Bulletin 5A3.

Application

Recommended for use on oilfield tubing, casing, line pipe and may be used for hydrostatic testing, storage, or as a running compound.

Specifications

Color	Black
Texture	Smooth
Worked Penetration (ASTM D-217)	320
NLGI Grade	1
Specific Gravity @ 77°F	1.3
Density (ASTM D-1298)	10.9
Dropping Point (ASTM D-2265)	375°F
Friction Factor	1
Evaporation	< 2.0
Oil Separation	< 5.0
Gas Evolution	< 20
Water Leaching	< 5.0
Brush Ability	Pass

Description

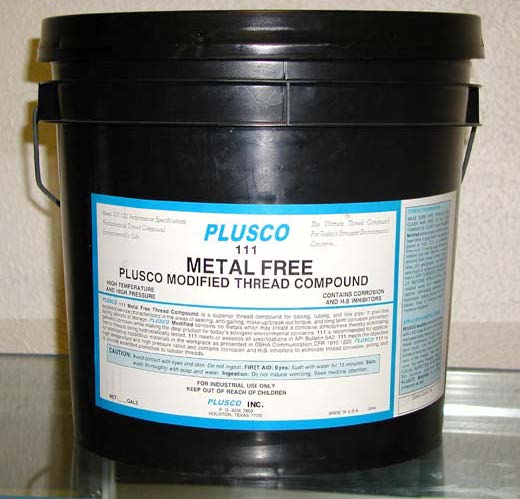

PLUSCO 111 PTFE Metal Free Modified Thread Compound has been designed to replace conventional API compounds which contain over 60% metallic powders.

PLUSCO 111 PTFE Metal Free Modified Thread Compound was developed to address some of today's stringent environmental concerns. This non-hazardous thread compound does not contain any metals which may create a corrosive condition. Thus, eliminating galvanic action commonly found in thread compounds which contain various dissimilar metals.

PLUSCO 111 PTFE Metal Free Modified Thread Compound is not affected by hydrogen sulfide, salt, water or down hole chemicals, which commonly react with metals found in conventional thread compounds. This environmentally oriented thread compound provides ease of make-up and break-out on a wide range of pipe composition. or thread configuration. It provides excellent service performance in the area of lubrication. sealing and corrosion protection during periods of storage.

PLUSCO 111 PTFE Metal Free Modified Thread Compound meets or exceeds the eight objectives torn thread compound as stated in API Bulletin 5A3.

Application

PLUSCO 111 PTFE Metal Free Modified Thread Compound is recommended for use on oilfield and water well tubing, casing, and line pipe. It also may be used for hydrostatic testing, storage, or as a running compound.

Specifications

Color	Black
Odor	Mild Hydrocarbon
Texture	Grainy
Worked Penetration (ASTM D-217)	320-335
NLGI Grade	1
Specific Gravity @ 77°F	1.14-1.15
Density (ASTM D-1298)	9.55-9.62
Dropping Point (ASTM D-2265)	222°F
Brushability	to 0°F

Description

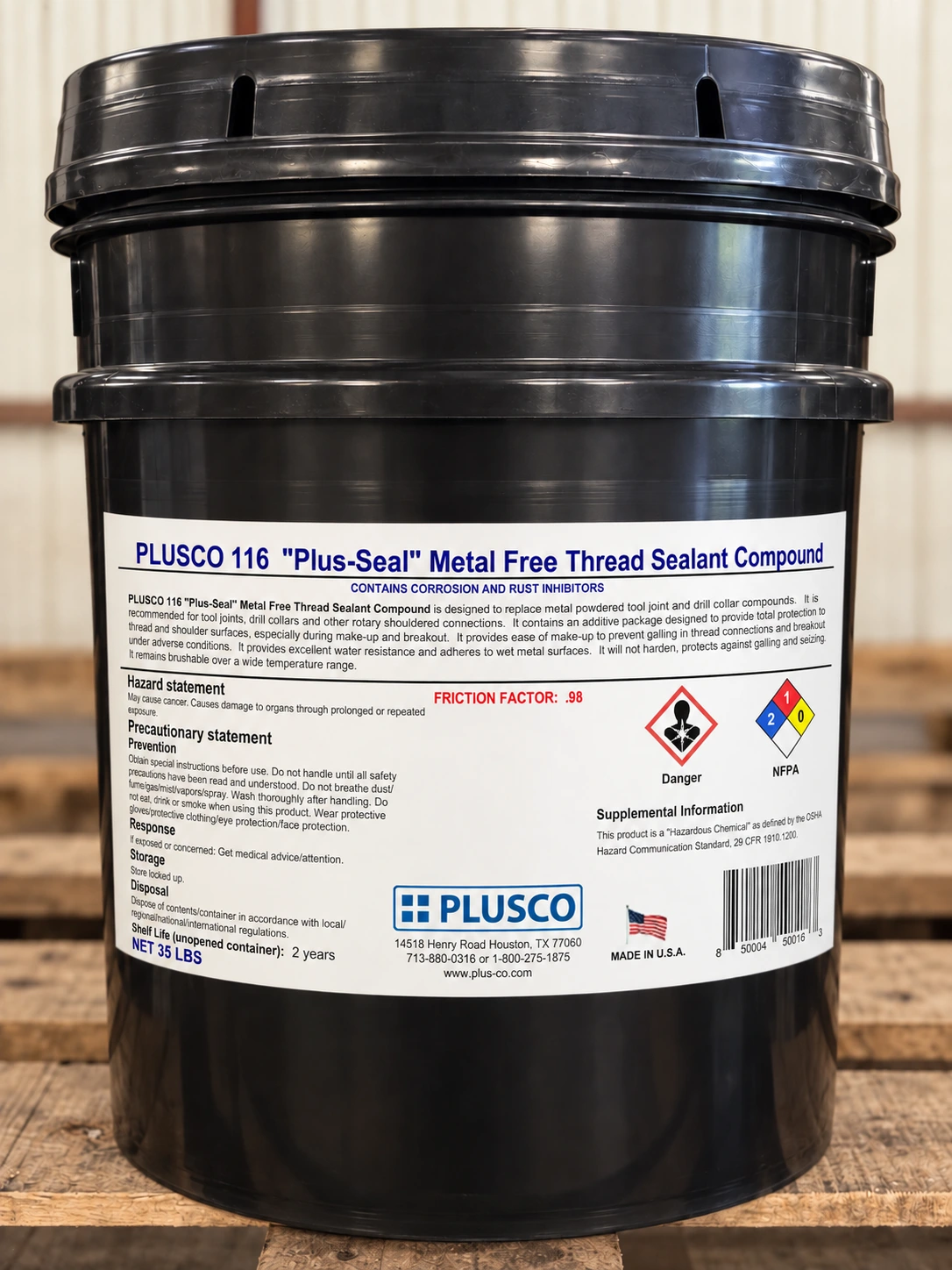

PLUSCO 116 Metal Free Thread Sealant Compound contains an additive package designed to provide total protection to thread and shoulder surfaces. This is especially true during make-up and breakout. It provides ease of make-up to prevent galling in thread connections and breakout under adverse conditions. PLUSCO 116 Metal Free Thread Sealant Compound contains corrosion and rust inhibitors, provides excellent water resistance and adheres to wet metal surfaces. Tool joints can be made up with made up connection. PLUSCO 116 Metal Free Thread Sealant Compound will not harden, protects galling and seizing and remains brushable over a wide temperature range.

PLUSCO 116 Metal Free Thread Sealant Compound was developed to address some of today's stringent environmental concerns. This non-hazardous thread compound contains no metals which may create a corrosive condition thereby eliminating galvanic action commonly found in thread compounds which contain various dissimilar metals.

This environmentally safe thread compound contains no lead, zinc, aluminum, copper or other metallic additives which could contaminate a drill site. This product does not contain any hazardous ingredients as outlined in OSHA 20 CFR 1910-1200 and also meets the requirements as outlined in API 7A1.

PLUSCO 116 Metal Free Thread Sealant Compound is not affected by hydrogen sulfide, salt, water or downhole chemicals which commonly react with metals found in conventional thread compounds. This environmentally oriented thread compound provides ease of make-up and break-out on a wide range of pipe composition, or thread configuration. It provides excellent service performance in the area of lubrication, sealing and corrosion protection during periods of storage.

Application

PLUSCO 116 Metal Free Thread Sealant Compound is designed to replace metal powdered tool joint and drill collar compounds commonly associated with most conventional thread compounds.

PLUSCO 116 Metal Free Thread Sealant Compound is recommended for use on tool joints, drill collars and other rotary shouldered connections.

Specifications

Color	Black
Base Thickener	Lithium
Worked Penetration (ASTM D-216)	290-325
NLGI Grade	1.5
Specific Gravity	1.23
Density	10.25 Lbs./Gal.
Dropping Point	550°F
Service Rating	-20°F to 500°F
Oil Separation	1.3%
Friction Factor	0.98
4-Ball Point	800 kg
Water Resistant	Yes
Rust/Corrosion Inhibited	Yes

Description

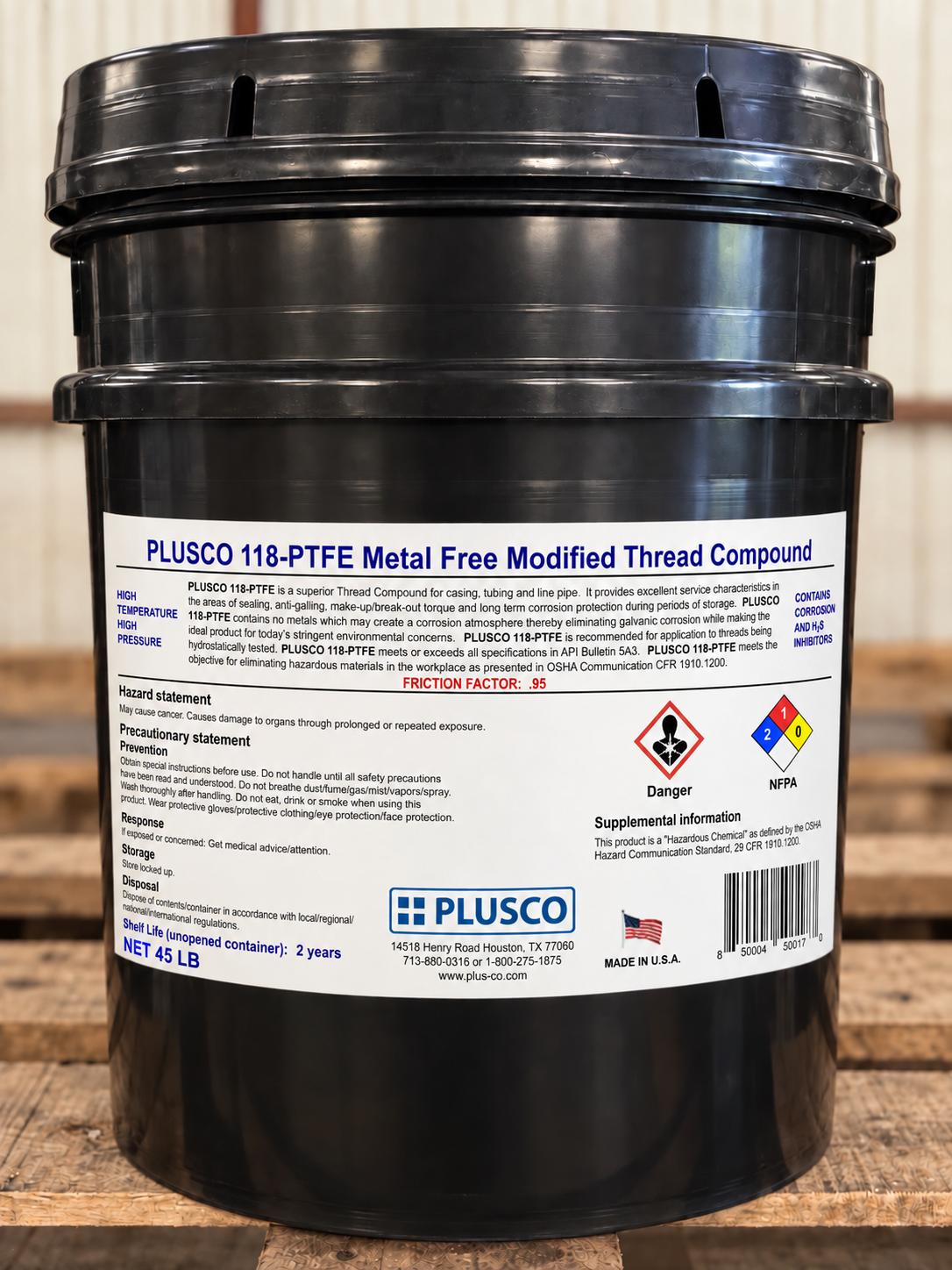

PLUSCO 118 High Temperature Metal Free Thread Compound has been designed to replace conventional API compounds which contain over 60% metallic powders.

PLUSCO 118 High Temperature Metal Free Thread Compound was developed to address some of today's stringent environmental concerns. This non-hazardous thread compound doesn't contain any metals which may create a corrosive condition. Thus, eliminating galvanic action commonly found in thread compounds which contain various dissimilar metals.

PLUSCO 118 High Temperature Metal Free Thread Compound is not affected by hydrogen sulfide, salt water or down hole chemicals, which commonly react with metals found in conventional thread compounds. This environmentally oriented thread compound provides ease of make-up and break-out on a wide range of pipe composition. or thread configuration. It provides excellent service performance in the area of lubrication. sealing and corrosion protection during periods of storage.

PLUSCO 118 High Temperature Metal Free Thread Compound meets or exceeds the eight objectives torn thread compound as stated in API Bulletin 5A3.

Application

PLUSCO 118 High Temperature Metal Free Thread Compound is recommended for use on oilfield and water well tubing, casing, and line pipe. It also may be used for hydrostatic testing, storage, or as a running compound.

Specifications

Color	Black
Texture	Grainy
Odor	Mild Hydrocarbon
Worked Penetration (ASTM D-217)	310-340
NLGI Grade	1
Specific Gravity @77°F	1.12-1.21
Density (ASTM D-1298)	9.3-10.1
Dropping Point (ASTM D-2265)	500°F
Brushability	to 0°F

Description

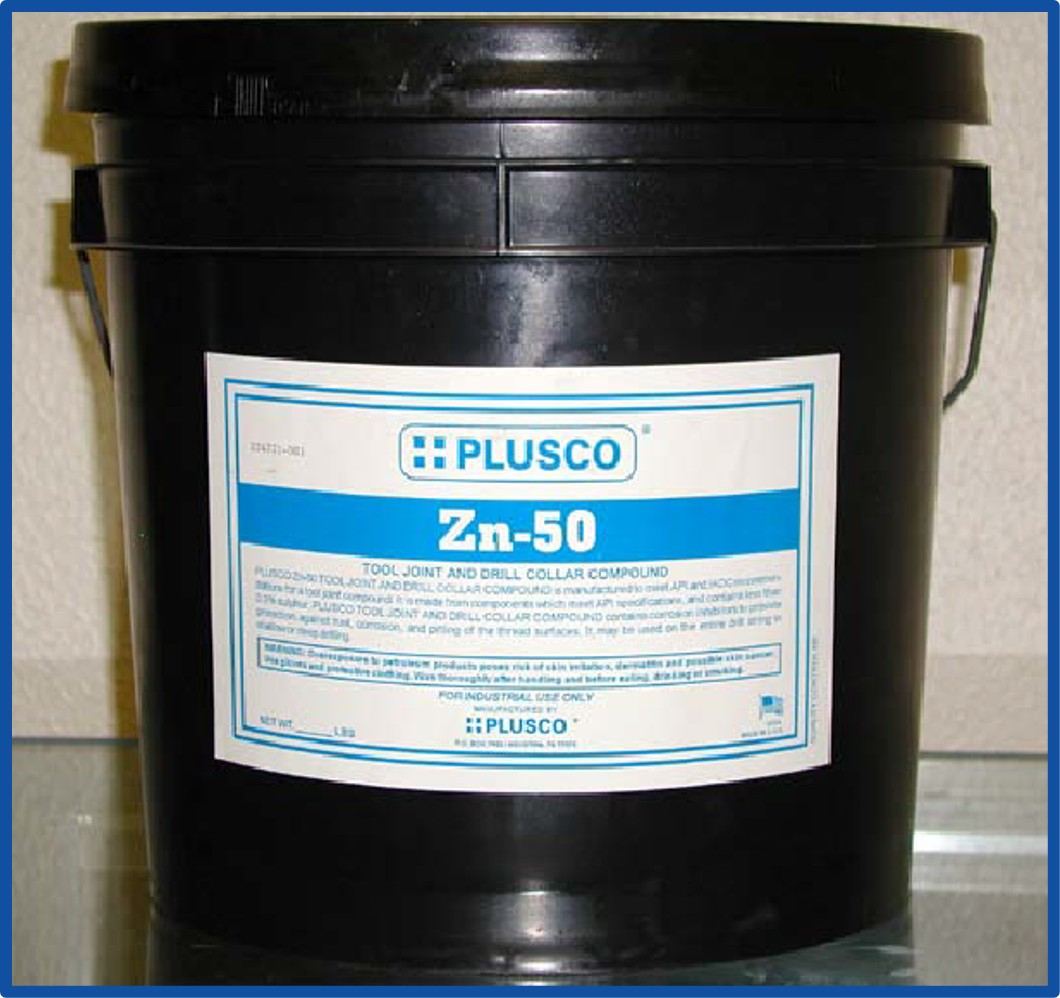

PLUSCO Zinc Based Tool Joint and Drill Collar Compounds are available in four grades, each meeting all API and 1ADC material specifications. PLUSCO Zinc Base Compounds are made using the highest quality metallic zinc powder, a premium petroleum base, and a PLUSCO exclusive additive package designed to provide unsurpassed protection to thread and shoulder surfaces.

PLUSCO 120 (Z-40) - 40% zinc, PLUSCO 121 (Z-50) - 50% zinc.

PLUSCO 122 (Z-60) - 60% zinc, PLUSCO 123 (Z-50 HT) - 50%.

Application by Grade

• Z-40 (120): Shallow drilling, tool joints, drill pipe storage compound
• Z-50 (121): Most widely used on complete drill string, rotary connections
• Z-60 (122): Hard/deep formation drilling, drill collars
• Z-50 HT (123): Geothermal/high temperature drilling, protects against drying effects

Description

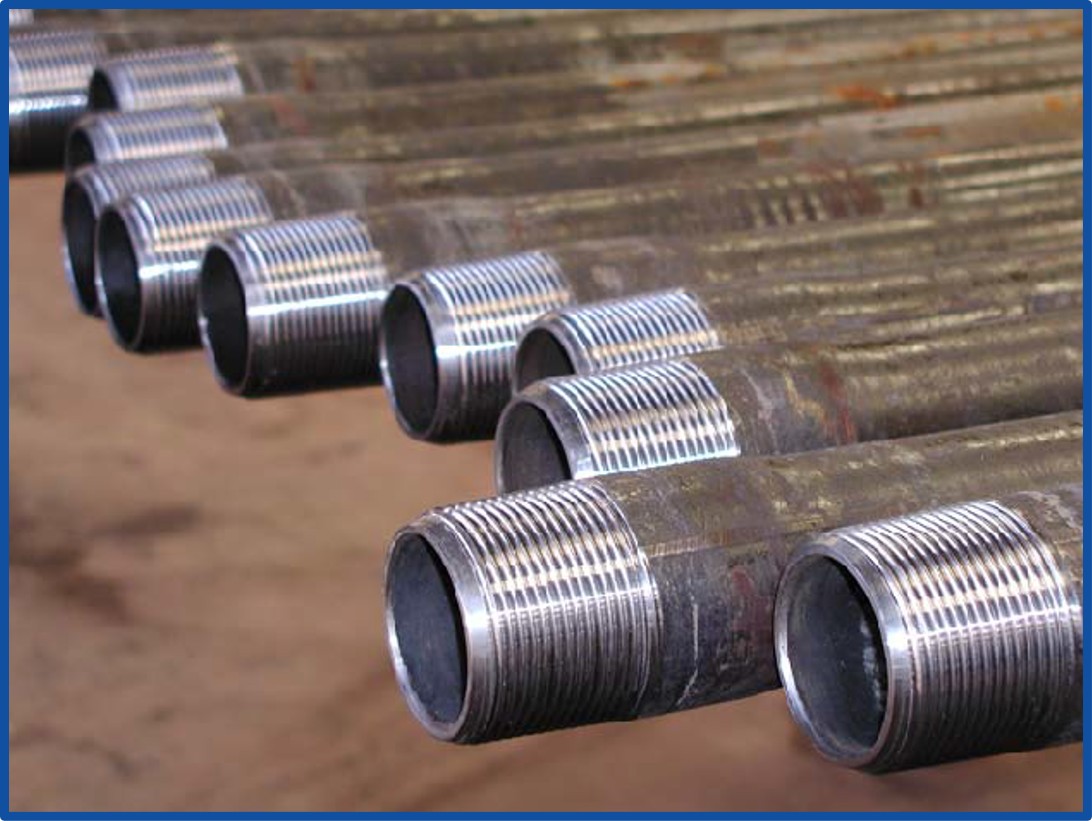

PLUSCO 126 Lead Base Drill Collar Compound is manufactured according to API recommendations, for a drill collar compound. It contains 65% pure metallic lead, in a premium petroleum base composition, it also contains "PLUS-EX", a special additive which provides a uniform compound coating and prevents lead build-up.

Application

Recommended for use on drill collars, casing, tubing, gas connections, well-heads, or other areas, where lead compounds are desired.

Specifications

Color	Dark Brown
Odor	Petroleum
Specific Gravity	1.7
Density (ASTM D-1298)	9.3-10.1
Flash Point	385°F

Description

PLUSCO 127 Dr. "G" Tool Joint Compound is a medium duty, low friction, anti-seize lead base tool joint compound. Rated as an extreme pressure and anti shock tool joint compound for medium drilling conditions.

Application

Multi-purpose tool joint and drill pipe compound. It was formulated for applications where lead base compounds excel.

Specifications

Color	Black
Grease Base	Lithium
Work Penetration	315-325
NLGI	1
Specific Gravity	1.3
Classification	Anti-galling

Description

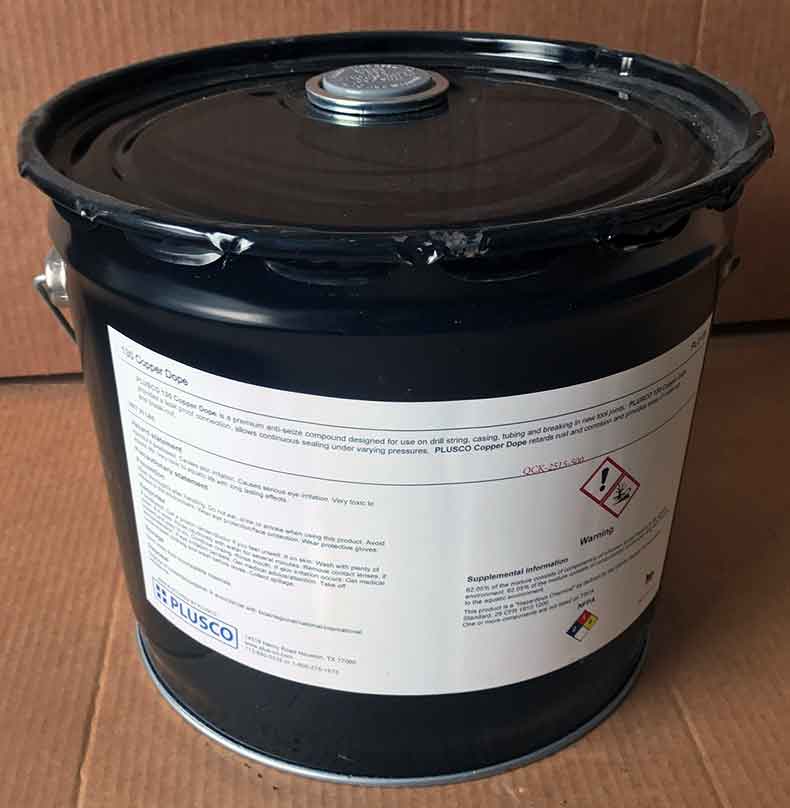

PLUSCO 130 Lead & Zinc Free Copper Dope is a premium extreme pressure anti-seize thread compound. Copper Dope provides a leak-proof connection and allows continuous sealing under adverse and varying pressure and temperature conditions.

Application

PLUSCO 130 is formulated to meet the rigid requirements of the entire drill string. It is also recommended as a casing and tubing high- pressure lubricant and sealant.

Specifications

Color	Copper Brown
Base Thickener	Lithium
Specific Gravity	0.95-1.03
Work Penetration @ 77 °F	310-340
NLGI Grade	1.5
Service Rating	-20 °F to +600 °F
Dropping Point	405 °F
Water Resistant	Yes
Rust/Corrosion Inhibited	Yes

Description

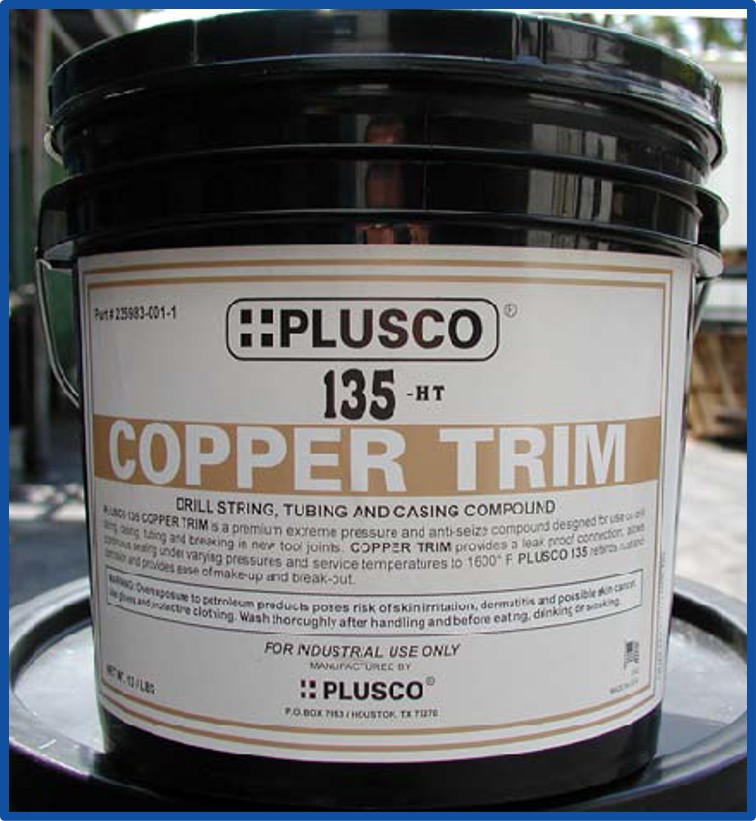

PLUSCO 135 HT Copper Trim is a premium extreme pressure, anti-seize, thread compound. Copper Trim provides a leak-proof connection, and will allow continuous sealing under varying pressure and adverse temperature conditions.

Application

PLUSCO 135 HT Copper Trim is formulated to meet the rigid requirements of the entire drill string. It is also recommended as a casing and tubing high-pressure lubricant and sealant.

Specifications

Color	Copper Brown
Base Thickener	Lithium
Work Penetration @ 77°F	310-340
NLGI Grade	1
Dropping Point	500 °F
Service Rating	-20 °F to +600 °F
Water Resistant	Yes

Description

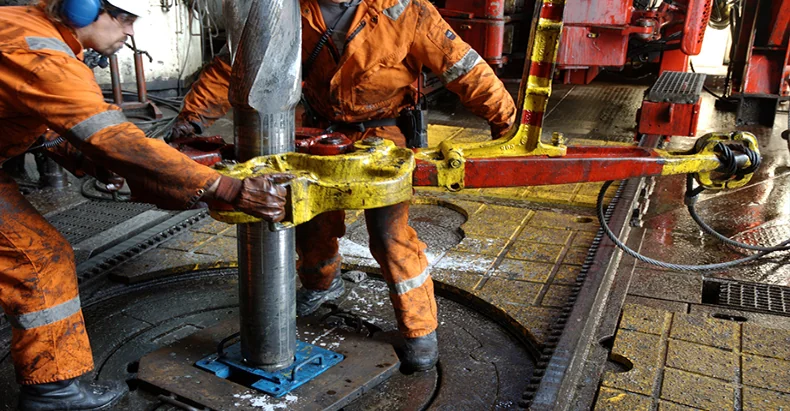

PLUSCO 138 is a premium Drill Pipe & Tool Joint Compound With Biodegradable Base Carrier formulated to meet the environmental concerns of the complete drill string without compromising product performance.

Application

PLUSCO 138 is recommended where environmental considerations are uncompromising and where lead free compounds are mandated.

Specifications

Color	Copper Brown
Base Carrier	Synthetic
Active Metallic Component	Copper
Penetration Worked @ 77 °F	310-325
NLGI	1.5
Specific Gravity	1.35-1.40
Total Solids	50% +/-
Rust / Corrosion Inhibited	Yes
Water Resistant	Yes

Description

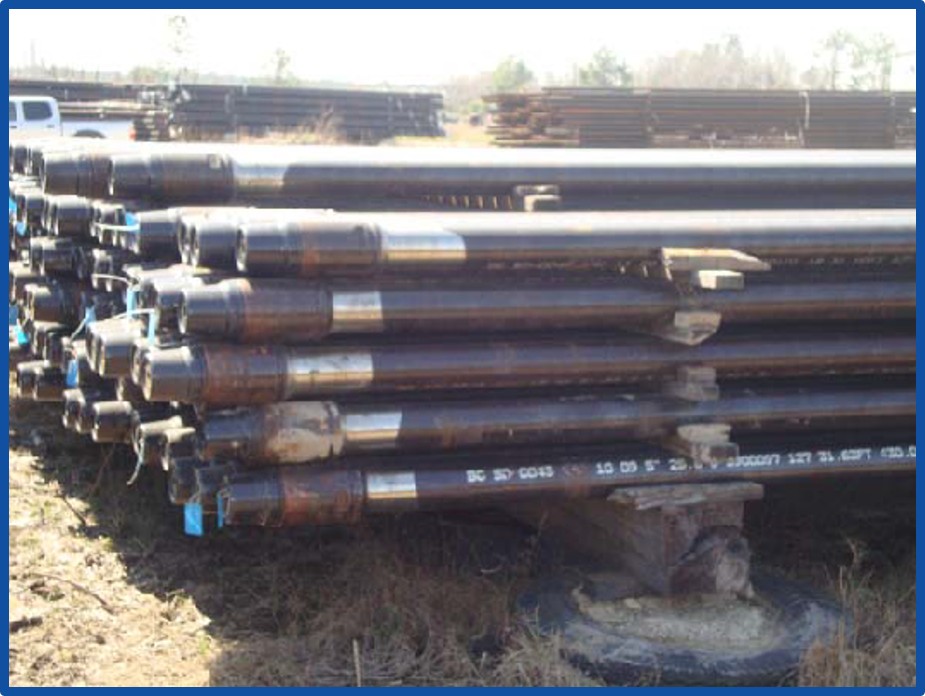

PLUSCO 150 Rig Master Tool Joint, Drill Pipe/Drill Collar Compound is a premium grade compound designed for the most demanding drilling applications. It provides exceptional protection against galling, seizing, and thread wear while maintaining consistent make-up torque values.

Application

PLUSCO 150 is formulated and manufactured for use on tool joint, drill collar and other rotary-shouldered connections.

Specifications

Color	Med/Dark Gray
Grease Base	Lithium
Consistency	Smooth
Penetration Worked (ASTM-216)	310-325
NLGI	Smooth
Specific Gravity	1.65
Density	13.7 Lbs./Gal.
Flash Point (ASTM D-92)	350 °F

Description

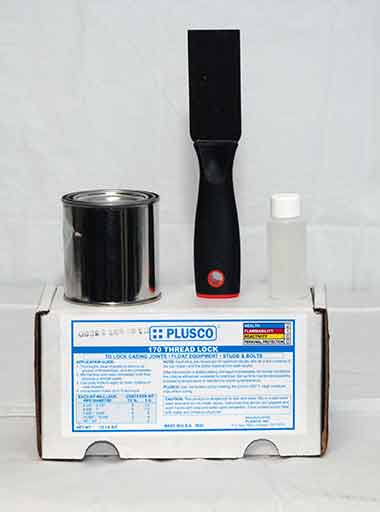

PLUSCO 170 is an epoxy based Thread Lock Compound designed to secure connections without welding. Not affected by vibration, pounding or expansion due to temperature variations.

Application

PLUSCO 170 Thread Lock Compound is recommended for locking casing threads tubing joints or other threaded connections without welding.

Specifications

Color	Gray
Chemical Family	Epoxy Polymer Resin
Penetration Worked (ASTM-216)	355-385
NLGI Grade	Zero
Specific Gravity @ 77 °F	1.8
Density (ASTM D-1298)	15.00
Friction Factor	1.5
Shelf Life	2 Years
Dropping Point (ASTM D-2265)	> 600 °F

Description

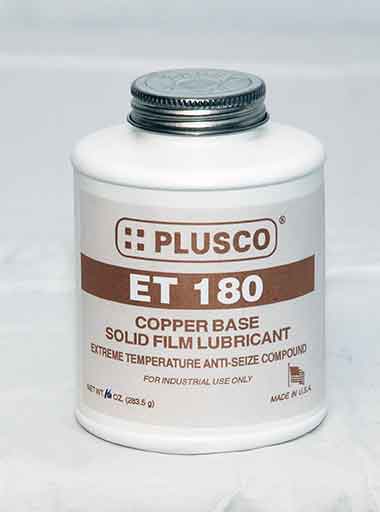

PLUSCO 180ET is an extreme temperature anti-seize lubricating compound. This anti-seize compound is formulated for use on areas subjected to high temperatures. PLUSCO 180ET has a service rating of 1800°F (980 °C).

Application

PLUSCO 180ET is recommended for low speed high torque bearings under high temperature conditions where galling and seizing can occur.

Specifications

Color	Copper Brown
Texture	Smooth
Active Component	Copper
Penetration Worked (ASTM-216)	320
NLGI Grade	1
Specific Gravity	1.3
Density	9.50 Lbs./Gals.
Dropping Point (ASTM D-2265)	480 °F
Flash Point (ASTM D-92)	> 480 °F (> 204 °C)

Description

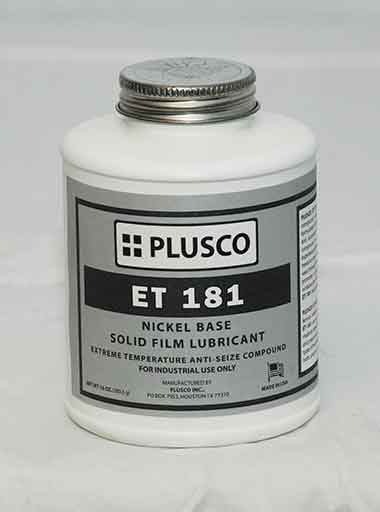

PLUSCO 181ET Nickel Base Anti-Seize Compound is an extreme temperature solid film anti-seize compound recommended for temperatures up to 2000°F. It is formulated using a balanced combination of premium grade nickel and aluminum metals.

Application

PLUSCO 181ET is recommended for application to stainless steel, ferrous metals, various alloys, and other premium metals. PLUSCO 181ET can also be used on various threaded connections.

Specifications

Color	Silver
Active Component	Nickel
Penetration Worked (ASTM-216)	290-310
NLGI Grade	1.5
Specific Gravity	1.03
Dropping Point (ASTM D-2265)	500 °F

Description

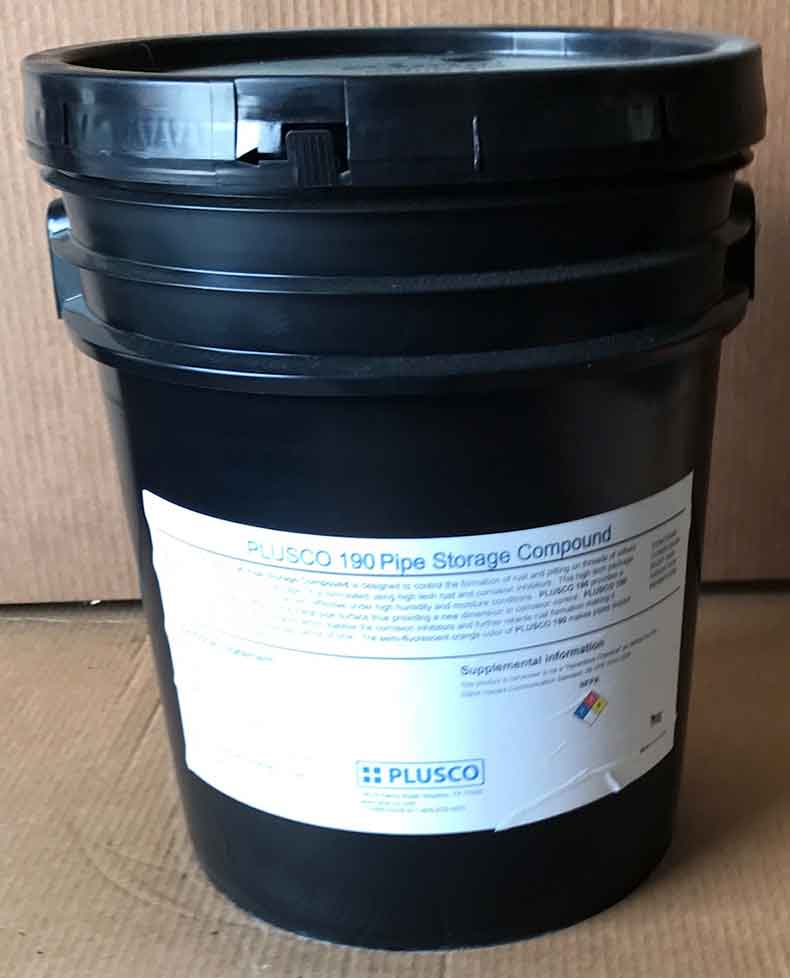

PLUSCO 190 Pipe Storage Compound is formulated using up to date high tech rust and corrosion inhibitors. This high tech package of inhibitors is found to be very effective under high humidity and moisture conditions.

Application

PLUSCO 190 Pipe Storage Compound is designed to control the formation of rust and pitting on threads of oilfield tubular goods during storage.

Specifications

Color	Semi Fluorescent Orange
Consistency	Smooth
Texture	Buttery
Base Thickener	Lithium
Penetration Worked (ASTM 216)	305
NLGI Grade	1.5
Specific Gravity	0.895
Density	7.5
Type Inhibitor	Anionic
Water Solubility	Insoluble
Corrosion Inhibited	Yes
Salt Spray test (ASTM B117)	2000hr + pass

Description

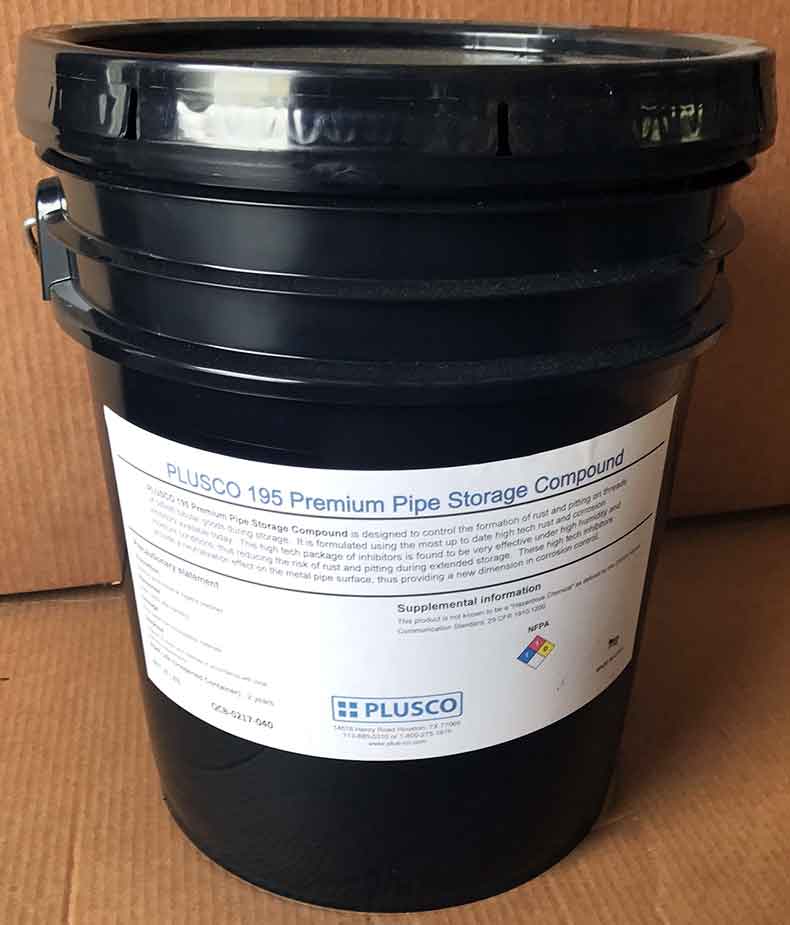

PLUSCO 195 Premium Pipe Storage Compound is designed to control the formation of rust and pitting on threads of oilfield tubular goods during storage. It is formulated using the most up to date high tech rust and corrosion inhibitors available today.

Application

PLUSCO 195 Premium Pipe Storage Compound is designed to control the formation of rust and pitting on threads of oilfield tubular goods during storage.

Specifications

Color	Golden Translucent
Consistency	Smooth
Texture	Buttery
Base Thickener	Calcium
Classification	Corrosion Inhibitors
Penetration, ASTM D-217 @ 77°F	340
NLGI Grade	1
Specific Gravity@ 77°F	0.895
Density lbs/gal @ 77°F	7.5
Flash Point, ASTM D-92	>350°F
Type Inhibitor	Anionic
Water Solubility	Insoluble
Salt Spray Test, ASTM B-117	Passed 2000+ hours
Other Properties	Rust Inhibited Corrosion Inhibited Oxidation Inhibited Non-Toxic

Description

PLUSCO 197 Valve Stem Rust and Corrosion Inhibited Lube is a premium rust and corrosion inhibitor. It is designed to control oxidation, rusting, and pitting on threaded and other machined surfaces during extended outdoor service.

Application

PLUSCO 197 is formulated for use on valve stems, threaded fittings and connections, machined surfaces and other areas which are subjected to high rates of rust and corrosion.

Specifications

Corrosion Inhibited

Yes
